Overhead Electric Line Construction

Transmission And Distribution No Comments

In this post, I will discuss one of the important parts of electrical power transmission and distribution and it is about the “Overhead Line”. I already postdated a couple of articles about electrical transmission and distribution. If you want you can have a look at it. Now come to the point. At first, what is the “Overhead Power Line?

Generally, an overhead electrical power line is a structure and its use for electric power transmission and distribution system and it transmits electrical energy or power for large distances from the generation center or plant.

Overhead Electric Line Construction With Details:

Along streets, alleys, through the woods and in backyards you may find many of the distribution lines that feed customers and your home by overhead structures. Generally, electric overhead lines use to stay exposed to wind and lightning, to trees and animals and to cars and kites.

For this reason, it is one of the critical components in the reliability of the distribution circuits system.

Related: Fundamental of Electric Power Distribution System

Normally electric overhead constructions come in a variety of configurations. Generally, one primary circuit is used per pole but utilities sometimes run more than one circuit per structure. For a typical three-phase circuit the most common structure is the horizontal layout with an 8 or 10 ft wooden crossarm on an electric pole.

But armless constructions can also found where fiberglass insulator standoffs or the post insulators are used in a tighter configuration. Utilities generally use 30 ft to 45 ft poles and set 6 ft to 8 ft deep. Vertical construction is also occasionally used in some areas for a special reason.

Span lengths can be varying from 100 ft to 150 ft in suburban areas and 300 ft or 400 ft in rural areas. Distribution circuits generally have an under-built neutral system and the neutral use to acts as a safety ground for the equipment and provide a return path for any unbalanced loads and due to the line to ground faults.

The neutral is used to stay 3 ft to 5 ft below from the phase conductors. But utilities in very high lightning areas the neutral wire can stay above the phase conductors to act as a shield wire to protect for lightning. Some utility system also runs the neutral on the crossarm.

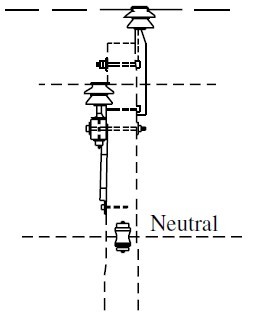

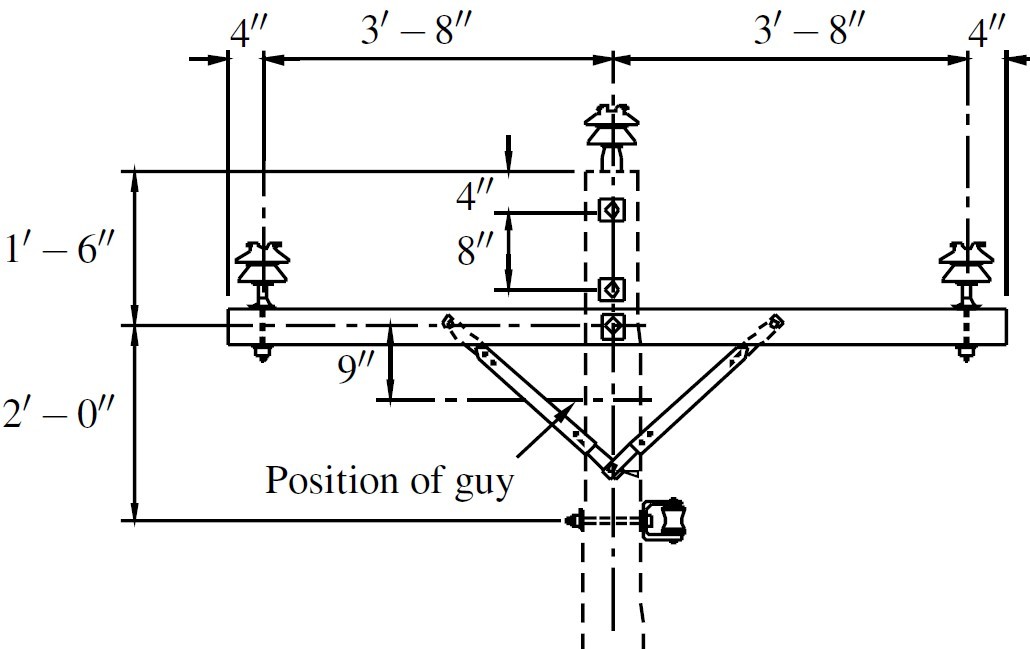

Example of Crossarm Construction Crossarm Construction

Secondary circuits use to run under the primary circuit. But the primary and the secondary circuit system may share the neutral or they can have an individual own neutral system.

Sometimes many electric utilities share their space with other utilities like telephone or cable television cables, internet cable may run under the electric secondary system.

Generally wood is the main pole material although steel, concrete, and fiberglass are also used for making the electric pole. But treated wood lasts a long time and it’s easy to climb and attach equipment with it and also augments the insulation between the energized conductors and ground.

Conductors are primarily aluminum metal. But insulators can be pin type, post type or suspension, either porcelain or polymer.

The National Electrical Safety Code (IEEE C2-2000) governs many of the safety issues that play important roles in overhead design issues. Electric poles must have space for crews to climb them and work safely in the air.

All equipment must have to stay sufficient strength to stand up to normal operations. Conductors must carry their own weight and the weight of any accumulated ice plus withstand the wind pressure exerted on the wire.

Related: Primary Power Distribution Configurations

Overhead line construction can cost $10,000/mi to $250,000/mi, depending on the circumstances like area, load type, distance, and others. But one of the major variables is labor costs and how developed the land and natural objects including rocks in the ground and trees in the way.

Then the circuit system is single or three phases and how long the conductors are. Suburban three-phase mains are typically cost about $60,000 to $150,000/mi or maybe more and for single-phase, laterals are often in the $40,000 to $75,000/mi range (Approximate).

But line construction is usually less expensive in rural areas but in urban areas, crews must deal with traffic and set poles in concrete. Typically this work is done live and the old conductor has to be moved to standoff brackets while the new conductor is strung but the poles may have to be reinforced to handle heavier conductors for future life.
